| Prototype Flaming White Arc Coil |
 |

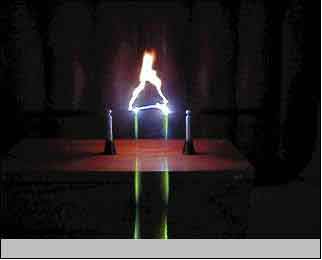

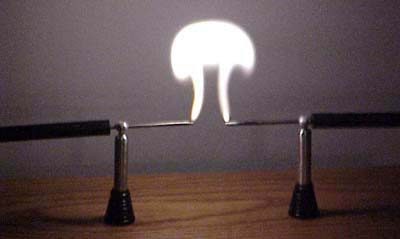

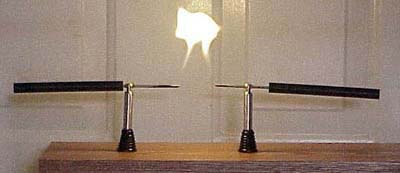

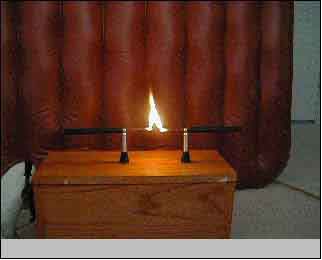

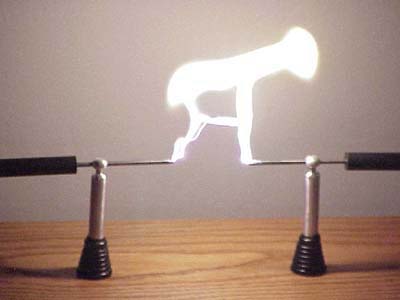

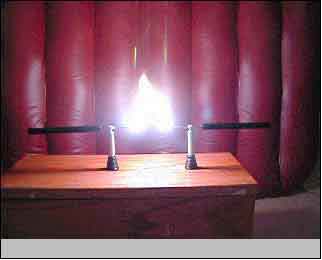

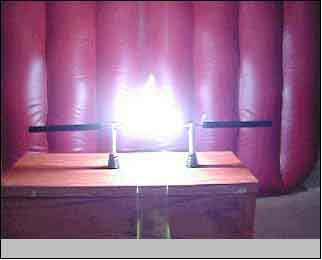

| Flaming and Arcing Discharges |
 |
|

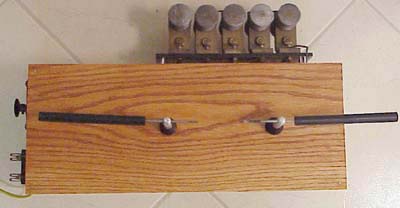

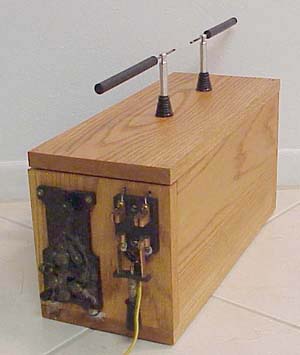

Prototype Flaming Arc Coil - Perhaps the most
efficient Tesla Coil ever designed! 2000V 1500 Watt Microwave Oven Transformer .014 mfd Mica Capacitor 5-Series .75" Diameter Self-Cooled Tungsten Spark Gap 4" Multilayered Disruptive Discharge Pancake Coil |
 |

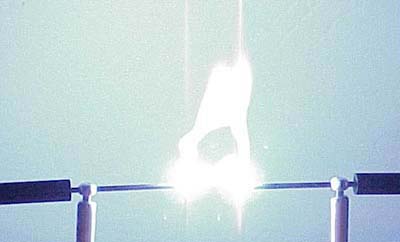

 Hot enough to disintegrate 1/8" pure Tungsten electrodes at less than one kilowatt! |
