Replica Rhumkorff Induction Coil For Charging Condensers

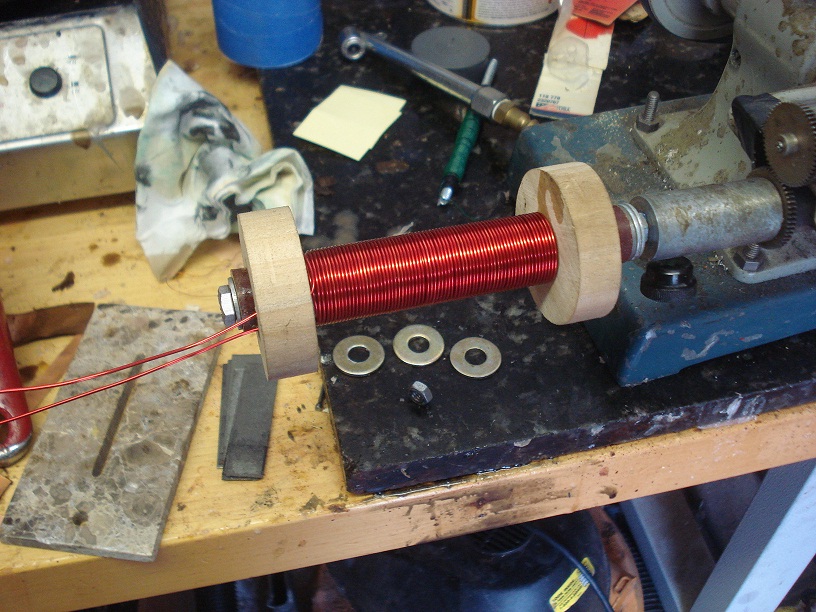

Primary winding, 2 layers

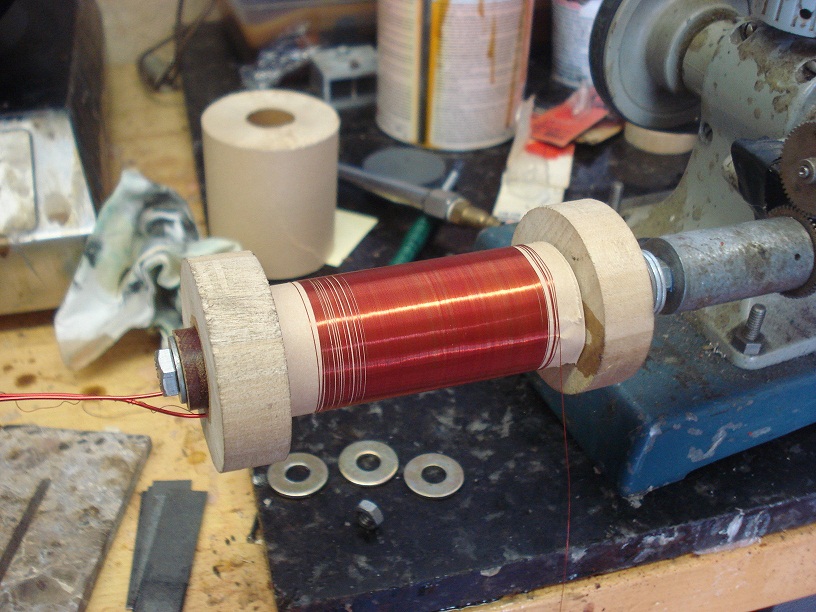

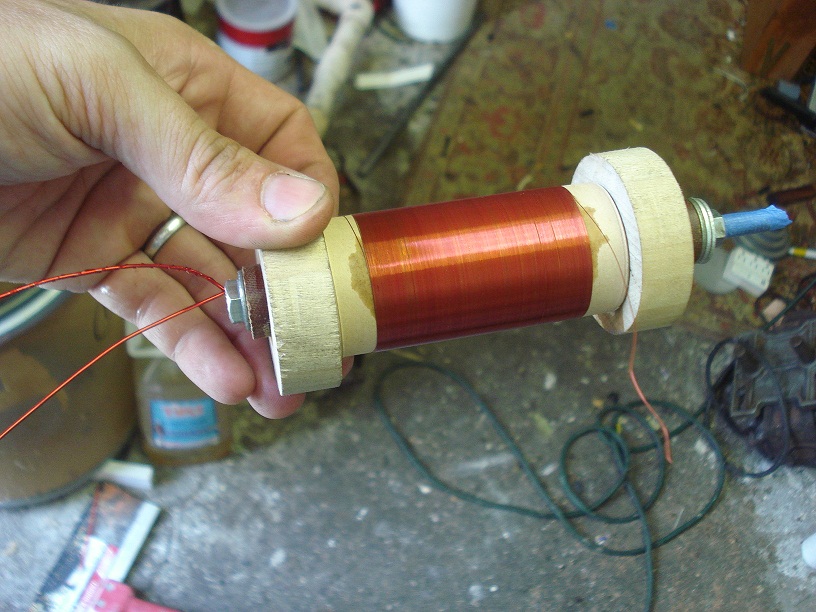

Secondary winding, many layers

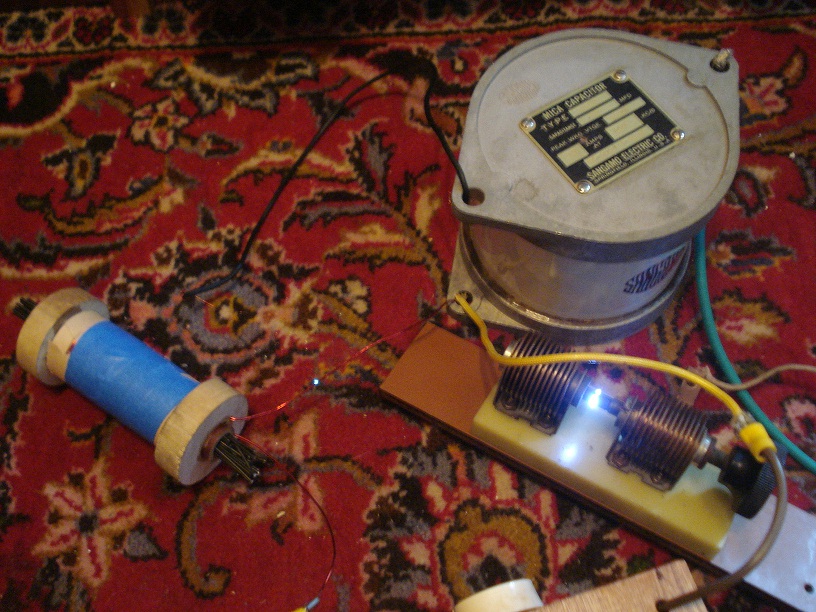

Coil is powered from a solid state light dimmer and 7.5 mfd capacitor.  (solid state ignition coil circuit)

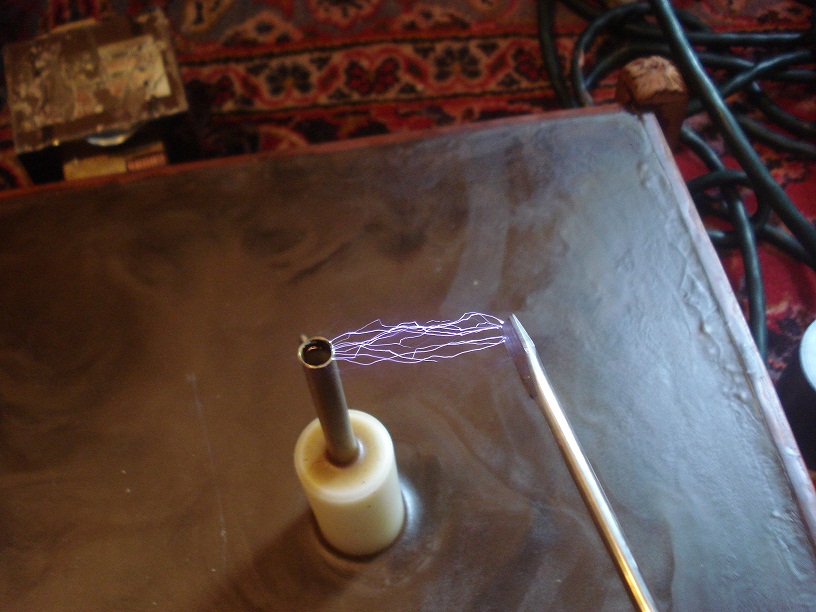

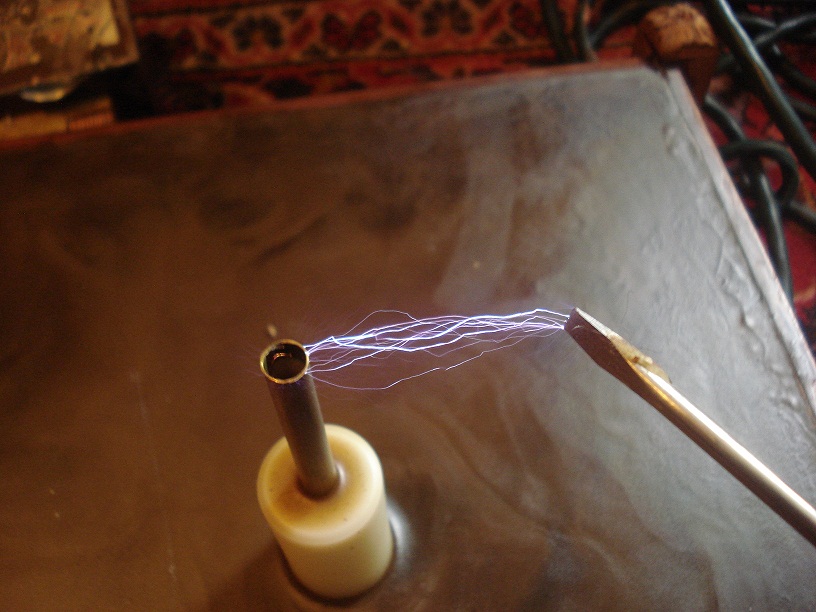

Coil used to charge .01 mfd capacitor for powering a Pancake Coil

Finished coil

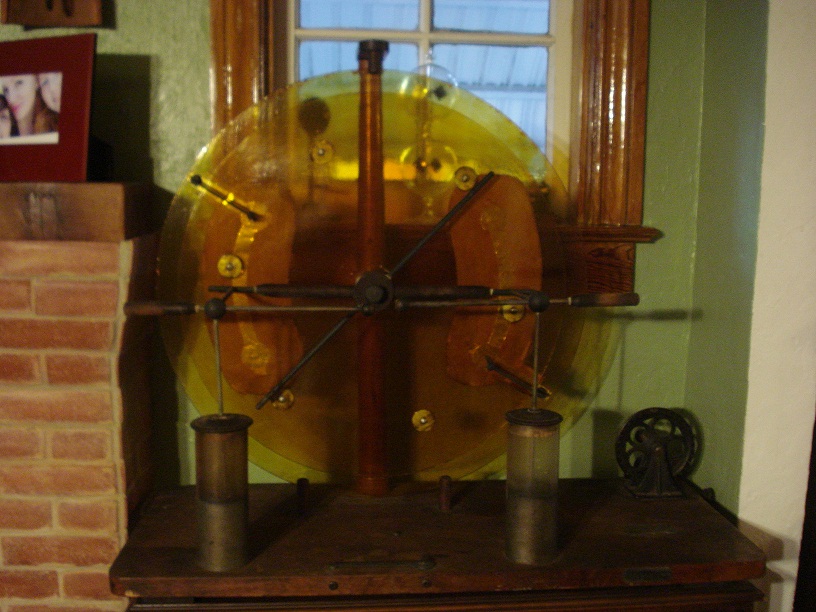

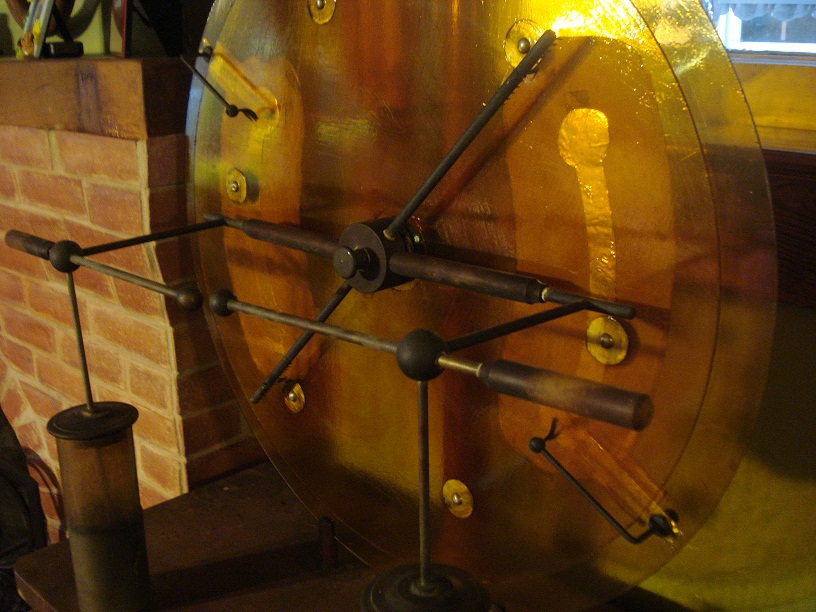

Finally shellaced the McToepler-Holtz machine!
