Kilowatt Tesla Coil
New Years 2011 Coil

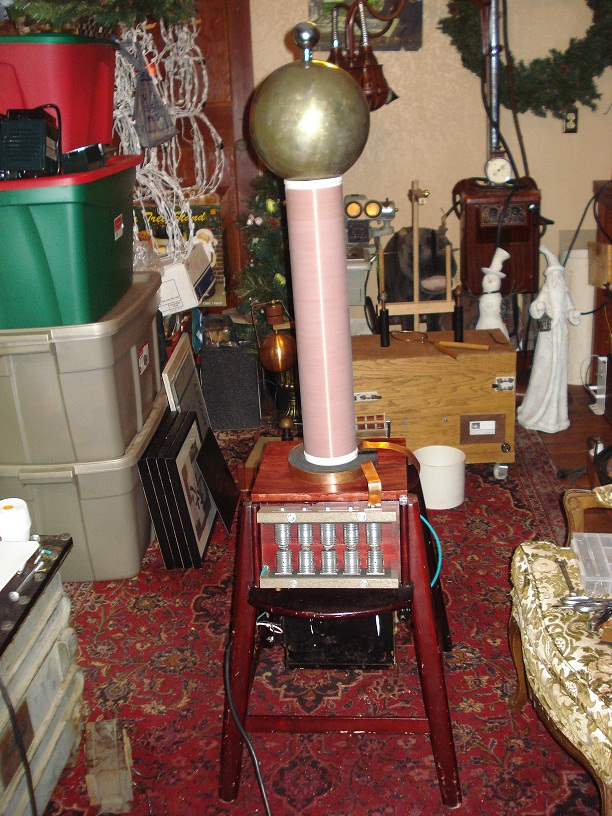

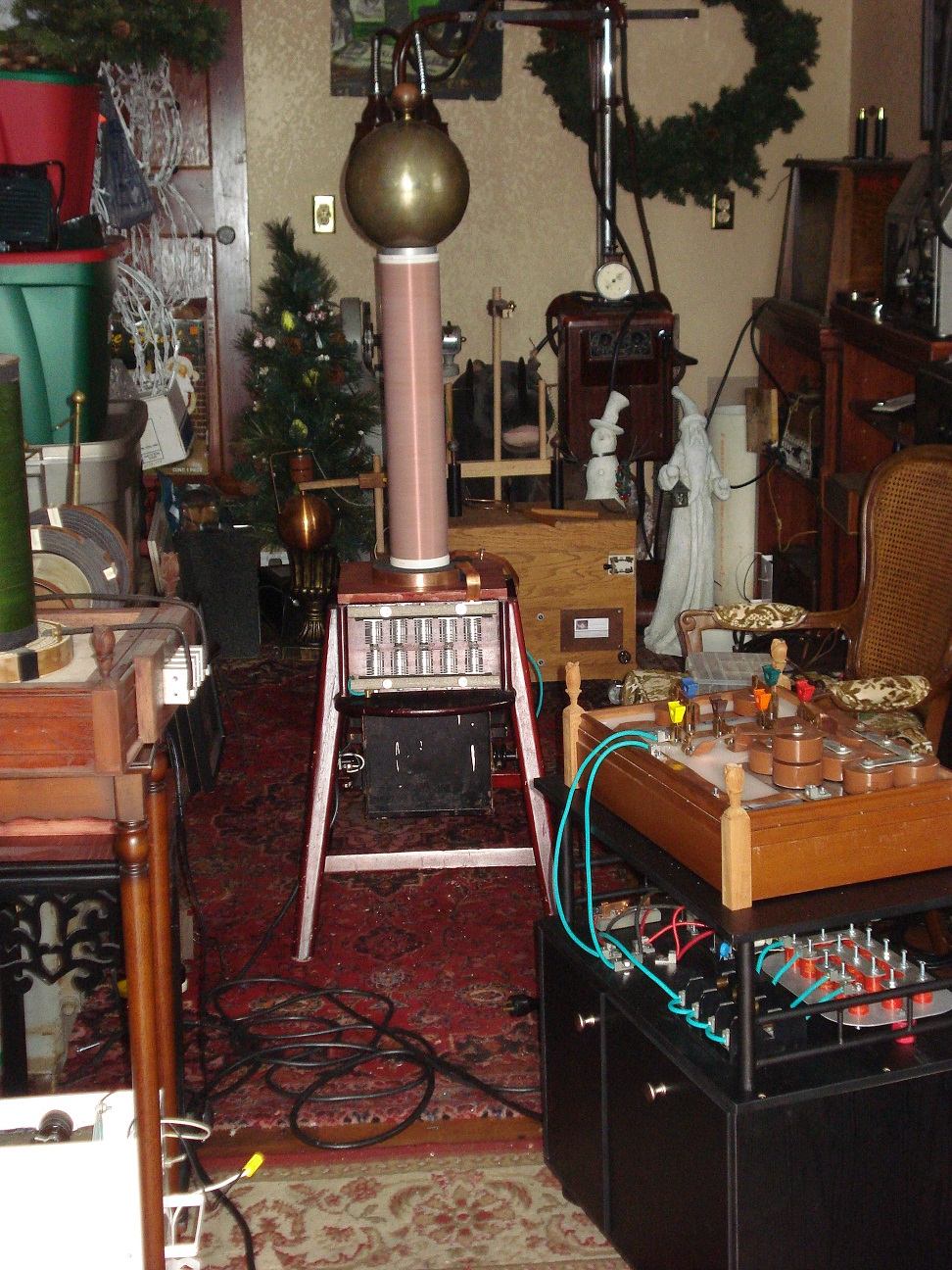

Mounted to a discarded high chair base!

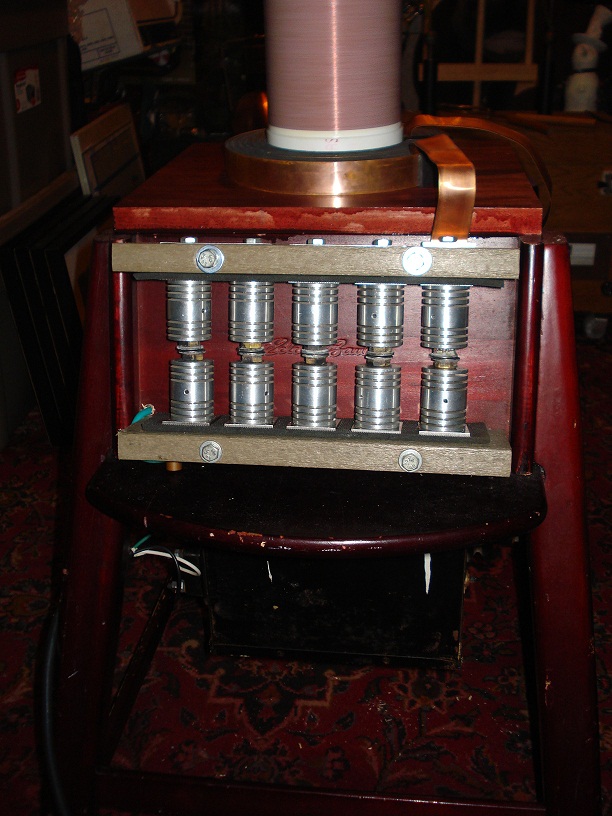

5 Series 3/4" Tungsten Spark Gap

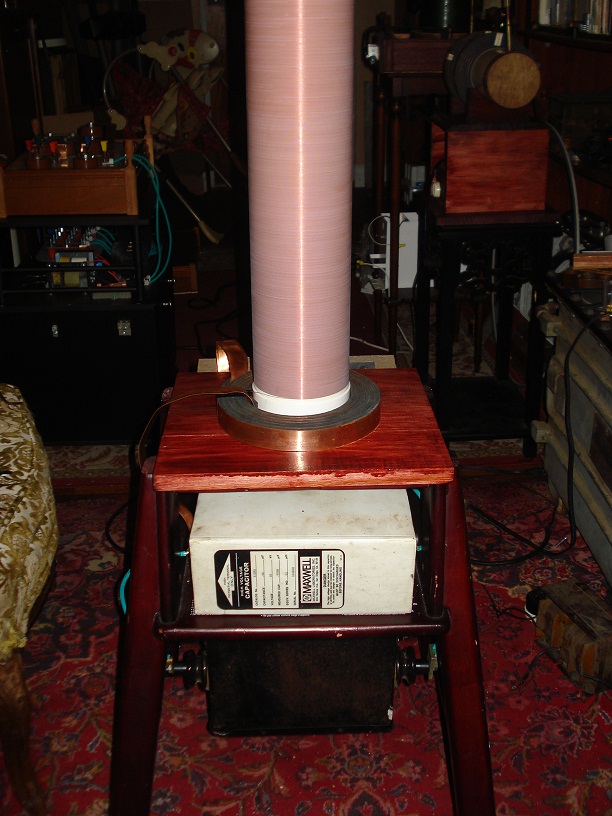

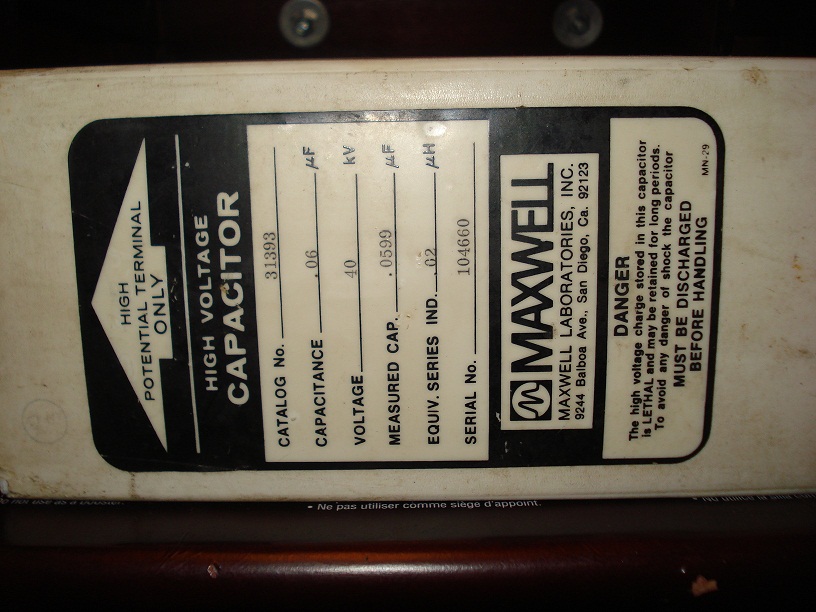

.06 mfd 40kV Maxwell Capacitor!

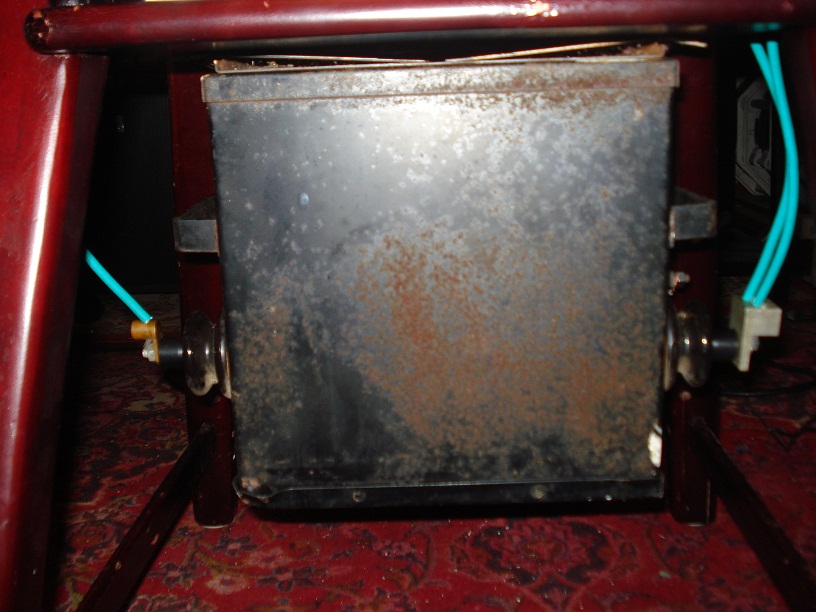

9kV 120mA Cold Cathode Transformer

Discharge exceeds 24"

Secondary Coil is on a threaded form, 21.5" of 48 TPI

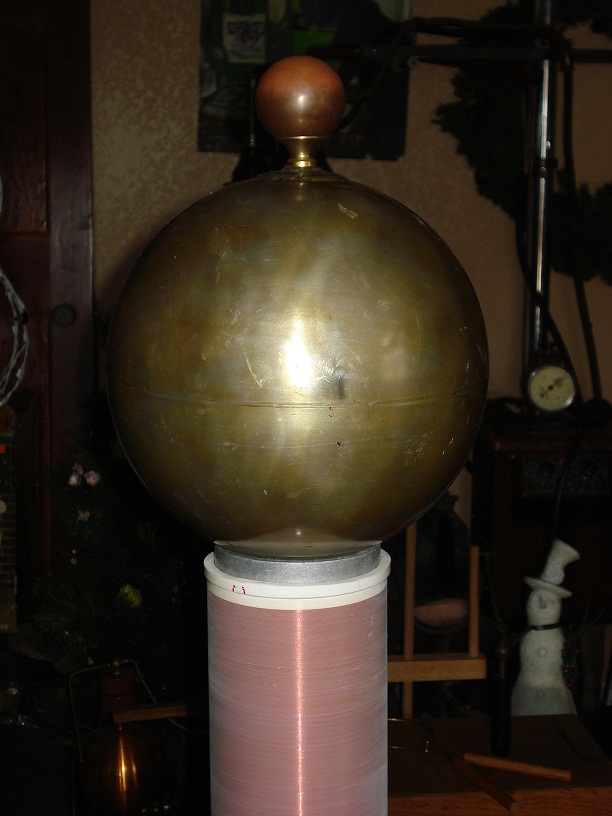

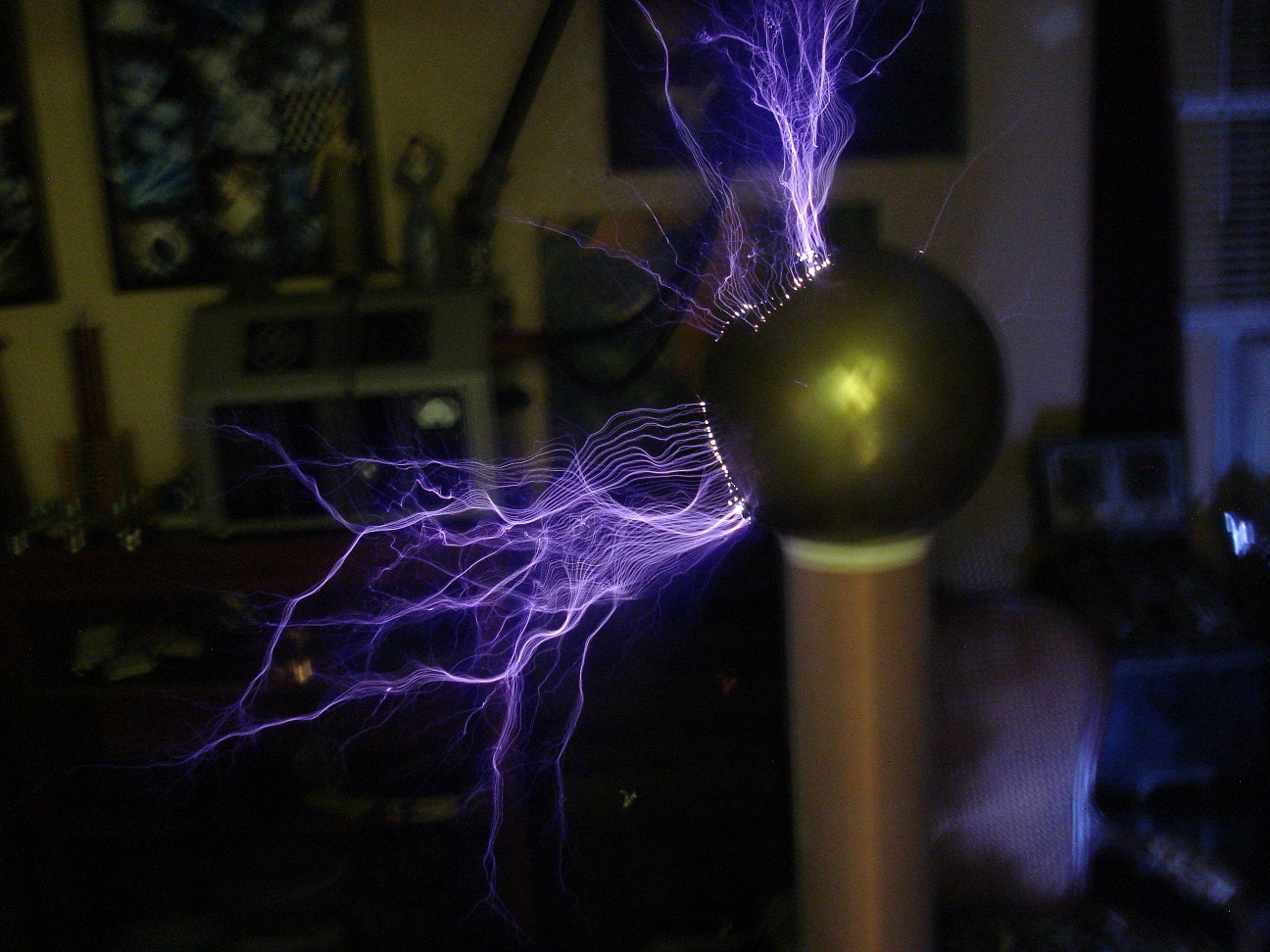

Spherical Topload

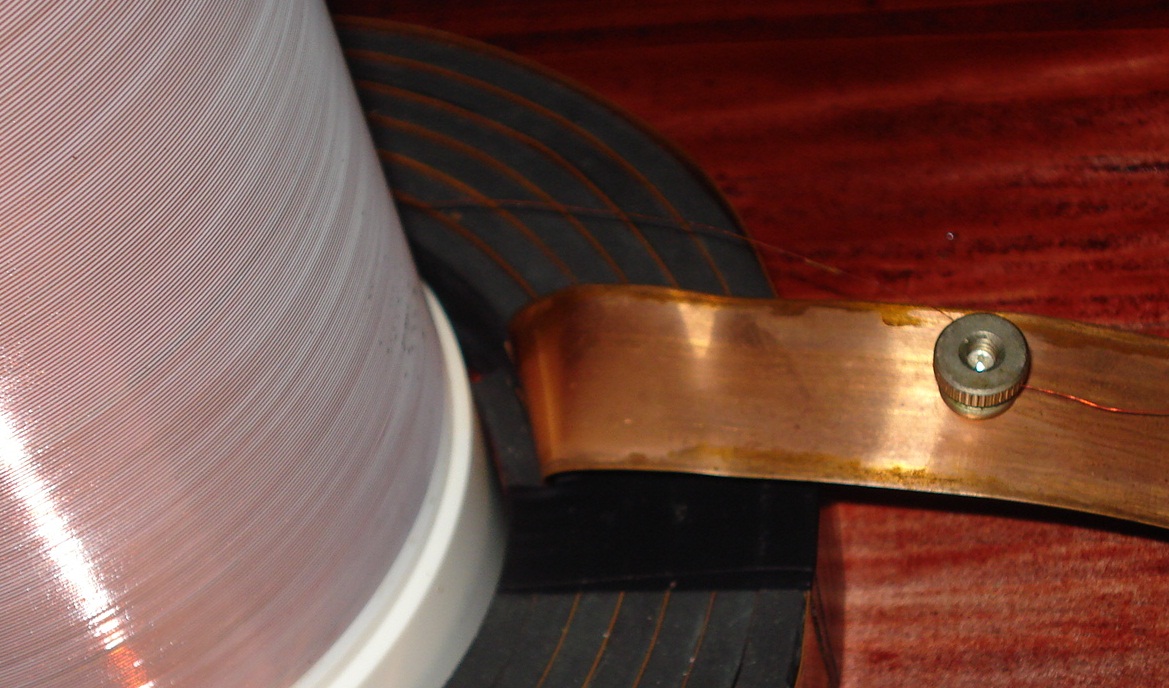

Ribbon connections, threaded secondary coil.
