Steam-Punk Violet Rays / Inside-Out Violet Ray Coil
Designed and handmade by Jeff Behary

A Bipolar Double Violet Ray Resonator

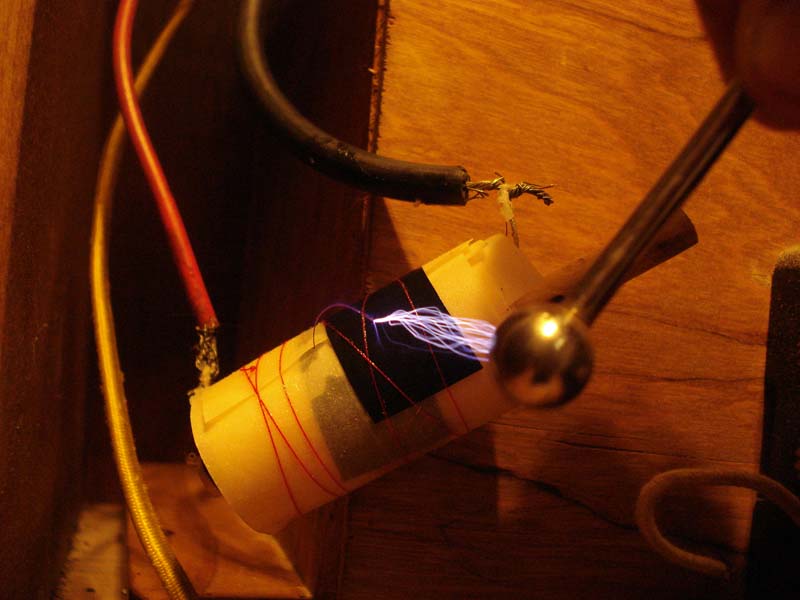

Testing an inside-out Violet Ray Coil...Sparks 1 - 1.5" long with .01 mfd

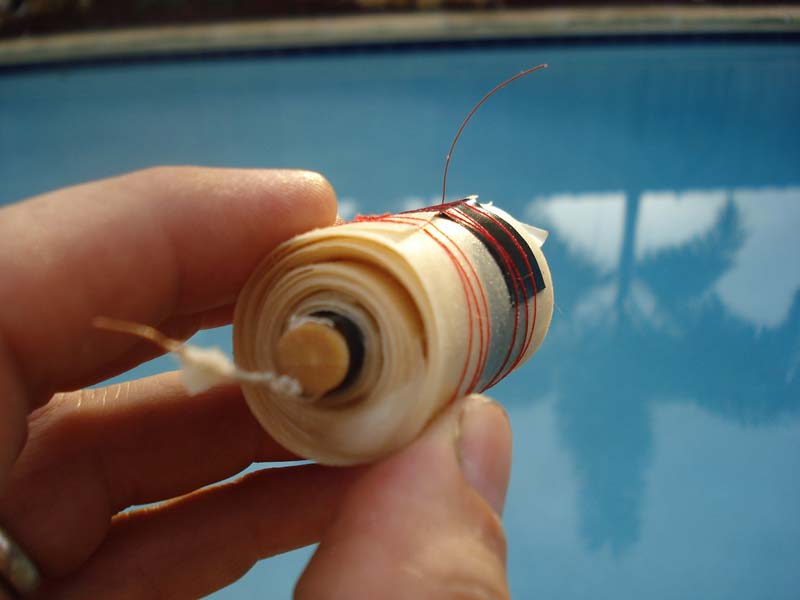

Primary on the inside (50 turns) Secondary on the outside (750 turns)

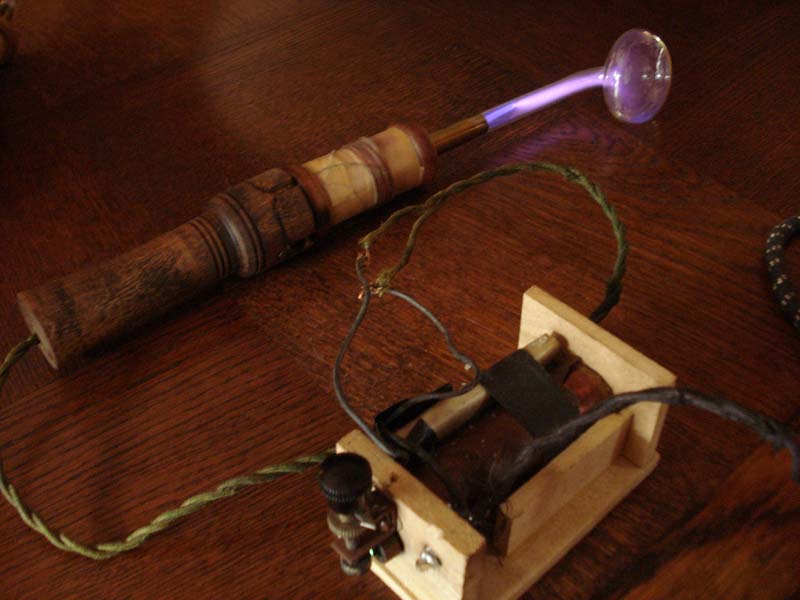

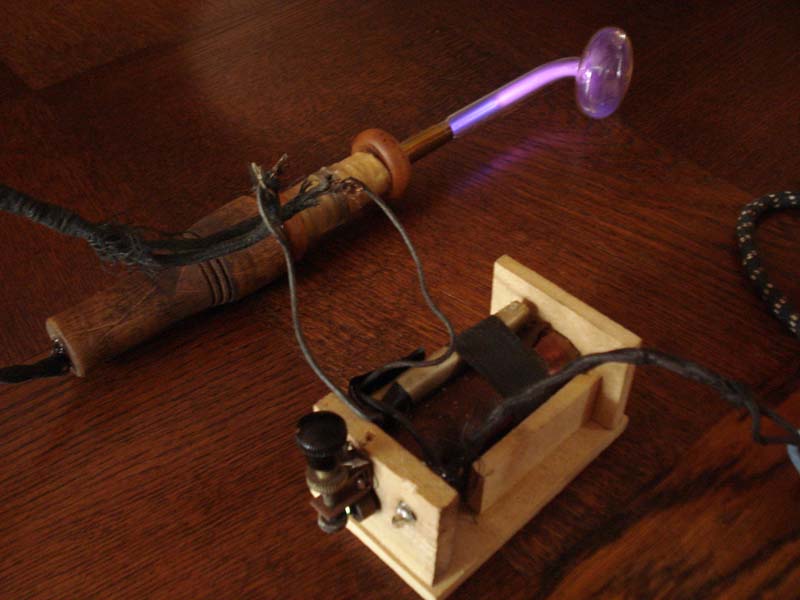

Simple Steam Punk Violet Ray Handle

Ornate Steampunk Violet Ray Handle

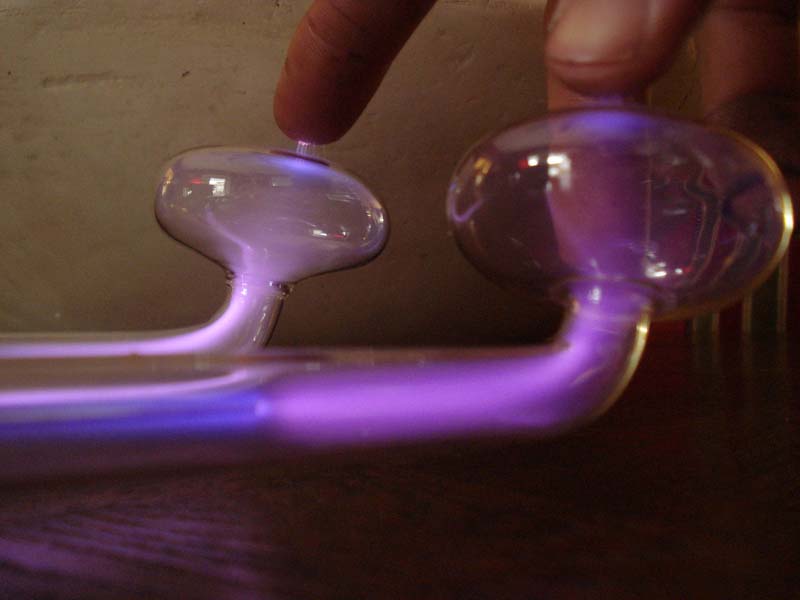

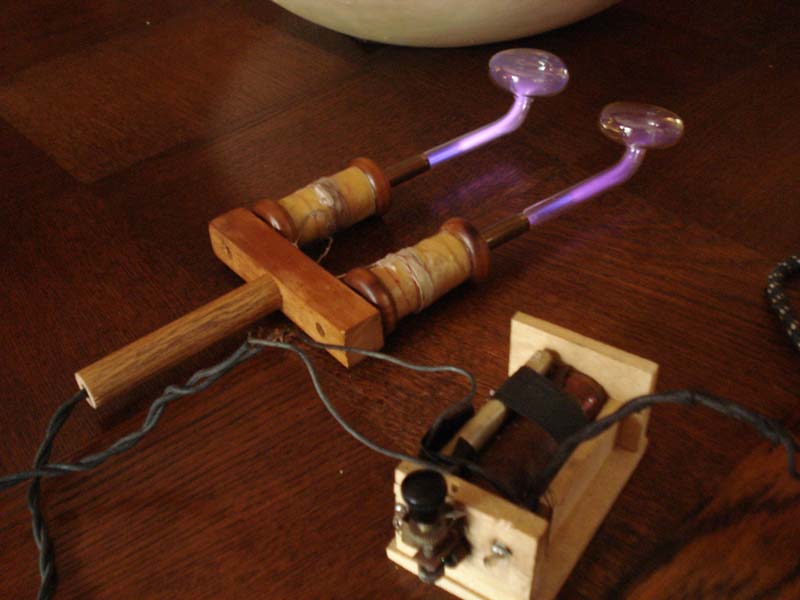

Double Violet Ray Resonator

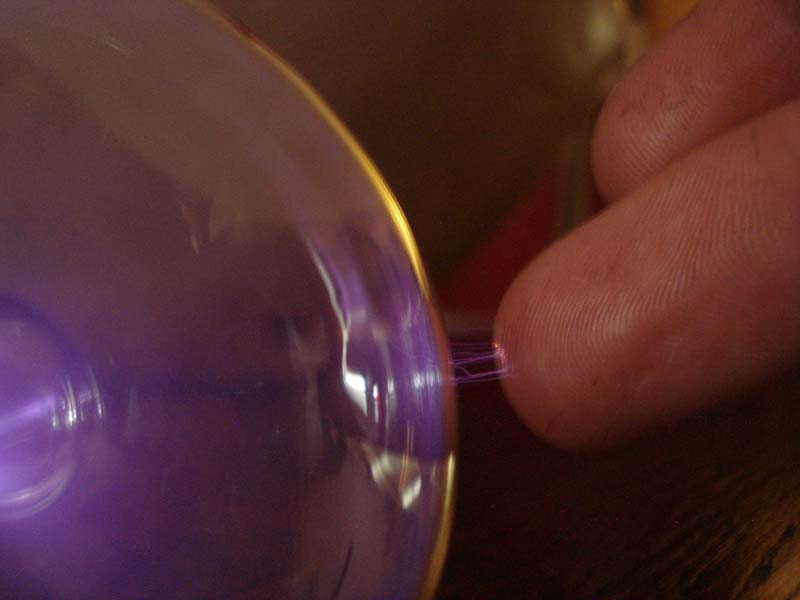

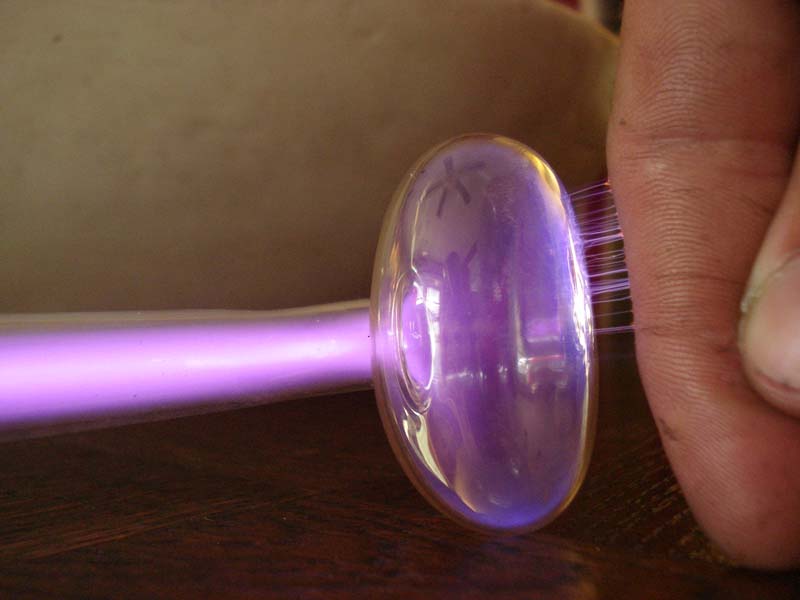

Sparks on low power...

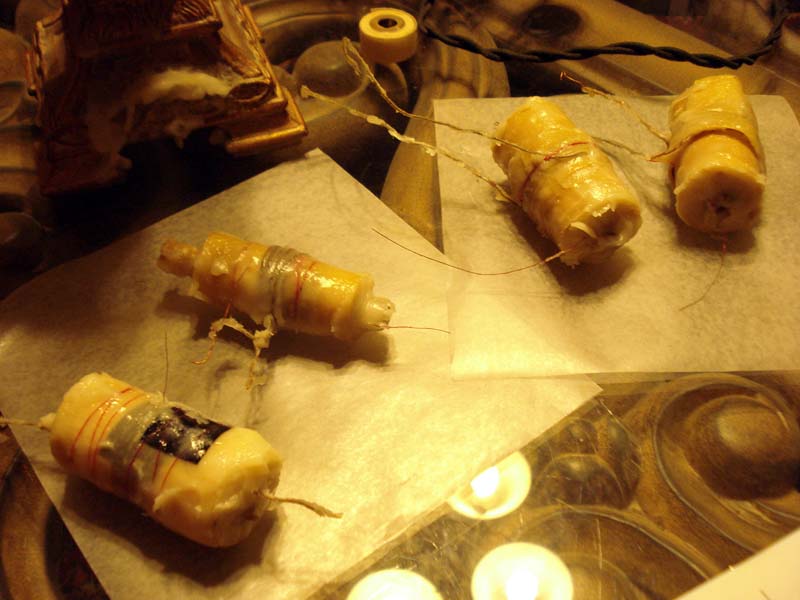

More wax to allow higher power....

Next Coil:  Bipolar Inside-Out Violet Ray Coil

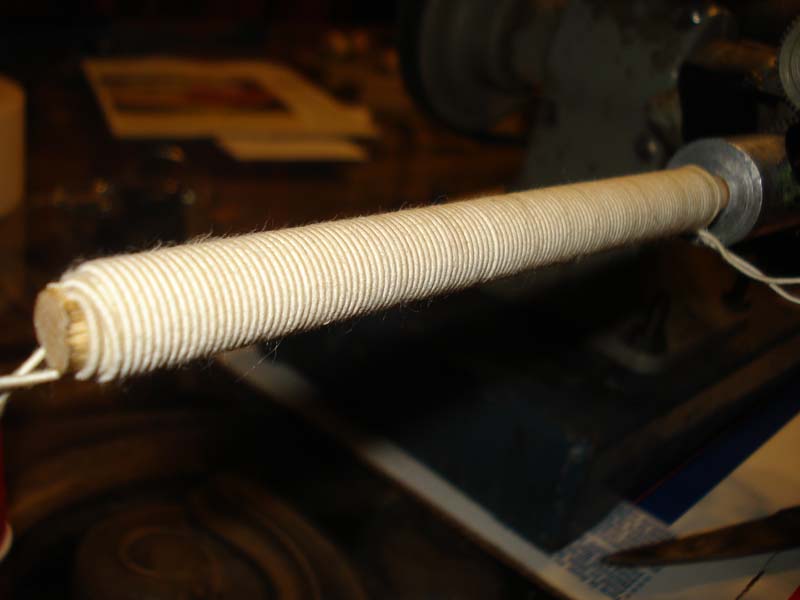

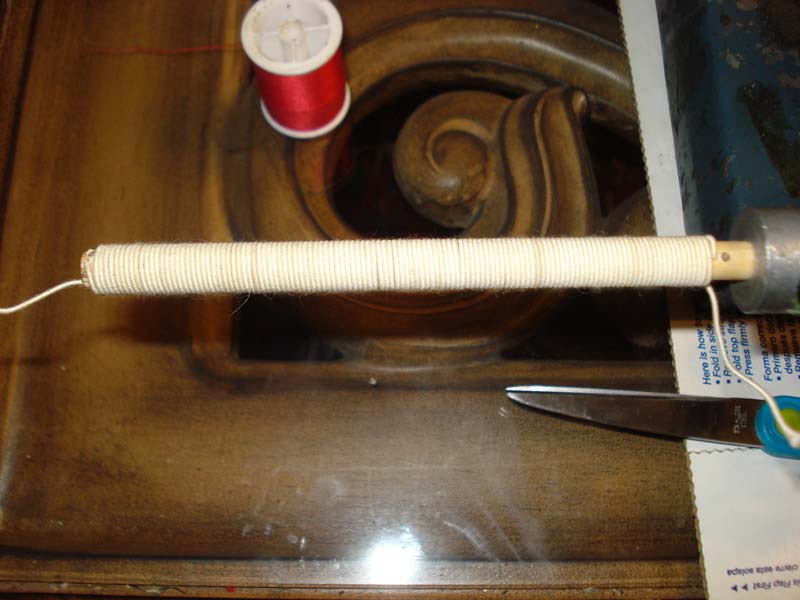

Second layer for Primary coil, 125 turns per layer.

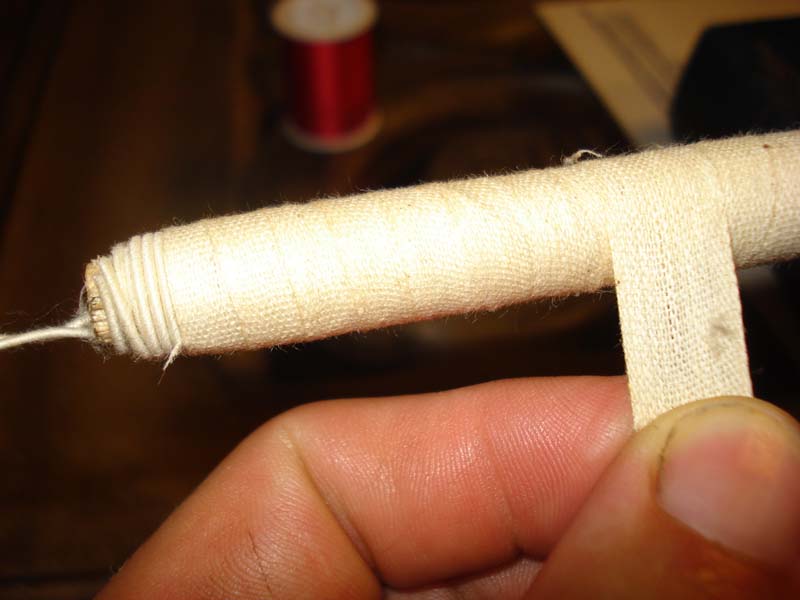

Cloth half-lapped for insulation...

More to come!
